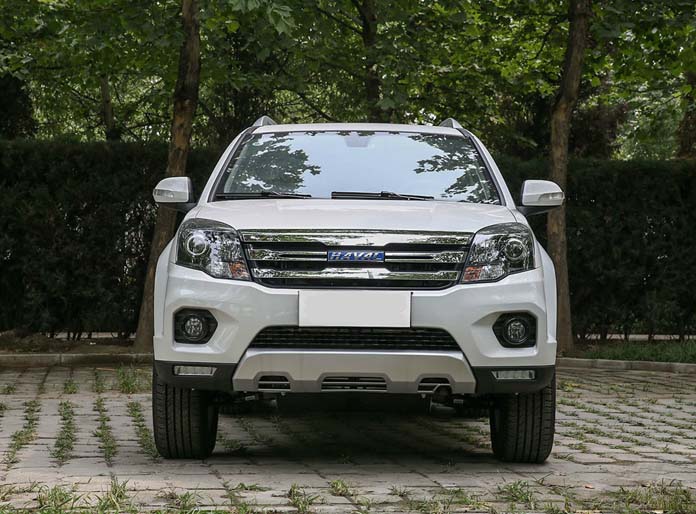

2018 Haval H5 Technical Specs

2018 Haval H5 Technical Specs

There are 6 variants of 2018 Haval H5, including a total displacement of 2.0T, a total of 1 gearbox options, maximum engine power: 140.0kW, maximum horsepower: 190PS, maximum torque: 320.0N · m, body length, width and height: 4645 × 1800 × 1775mm.

Price range: 107,800 – 136,800yuan

Price 107,800.00 RMB

Technical Specifications

*** Basic Specs *** ***
Engine Displacement 2.0T L4
Aspiration Turbo/Natural
Gearbox 6MT
Num. of Doors/Seats & Body Type 5/5 SUV
Body Size (L*W*H) 4645×1800×1775mm
Wheelbase 2700mm
Max. Speed (km/h) 180
Fuel Consumption (L/100km) 9.3/9.5/9.0(Diesel)(Test by China MIIT)
Curb Weight (kg) 1740
Fuel Tank Capacity (L) 70
*** Engine *** ***
Engine Code 4G63S4T (Petrol) | GW4D20D (Diesel)
Max. Power 190 PS or 140 kW @ 5200 rpm (4G63S4T) | 150PS or 110kW @4000rpm GW4D20D
Max. Torque 250N.m @4800(4G63S4T) | 320N.m @2800 (GW4D20D)
Num. of Cylinder 4
Num. of Valves 4
Fuel Type Petrol / Diesel
Fuel System MPI / Turbo
*** Body *** ***
Drive wheels – Traction FWD / AWD
Front Suspension McPherson struts.
Rear Suspension Torsion bar | Multi-link
Body structure Integral / Semi-integral /body on frame
Front Brakes Vented disc
Rear Brakes Drums
Front Tyres 215/55 R16
Rear Tyres 215/55 R16
*** Disclaimer *** Chinapev can not guarantee that the information on this page is 100% correct.
